Contextual Fit


The Smith Family has asked us to design an addition to their home overlooking Long Island Sound. The existing house—an internationally recognized work designed in 1965 by architect Richard Meier—no longer fully meets their needs. While the owners want the new spaces to address their current lifestyle, they have emphasized that the addition must respect the character and architectural integrity of the original Meier design, yet still establish its own distinct identity.

This project centers on exploring how new three-dimensional forms, spatial hierarchies, and organizational systems can be composed in relation to an existing architectural work. The goal is to develop a design whose massing and formal logic respond harmoniously to the existing structure while asserting a clear, contemporary presence of its own.

Narrative

The Smith family has developed a strong interest in astronomy, night skies, and the visual beauty of stars. Over time, this fascination has become part of their family identity — something they enjoy together through stargazing, outdoor evenings, and shared curiosity.They want to incorporate their love of stars into the design of the home in a way that feels atmospheric, artistic, and connected to nature. The design should create a memorable experience of light, pattern, and sky.

Hierarchy: Family Room

Meta-Idea: Stars

Public:

​

• Rooftop Terrace

​

Private:

​

• Master Bedroom

• Master Bathroom

• Exercise Room

​

Loud/Active:

​

• Rooftop Terrace

• Exercise Room

​

Group:

​

• Rooftop Terrace

​

​

Individual:​

• Master Bedroom

• Master Bathroom

• Exercise Room

​

​

Contextual Analysis

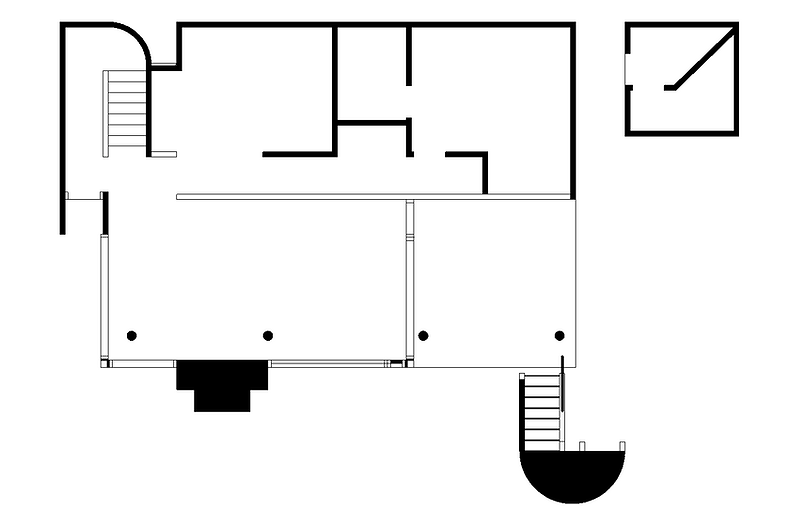

Existing Floor Plans

​​

​

​


Existing Building Systems & Patterns

Screenshot 2025-11-24 123858.png

Preliminary Designs

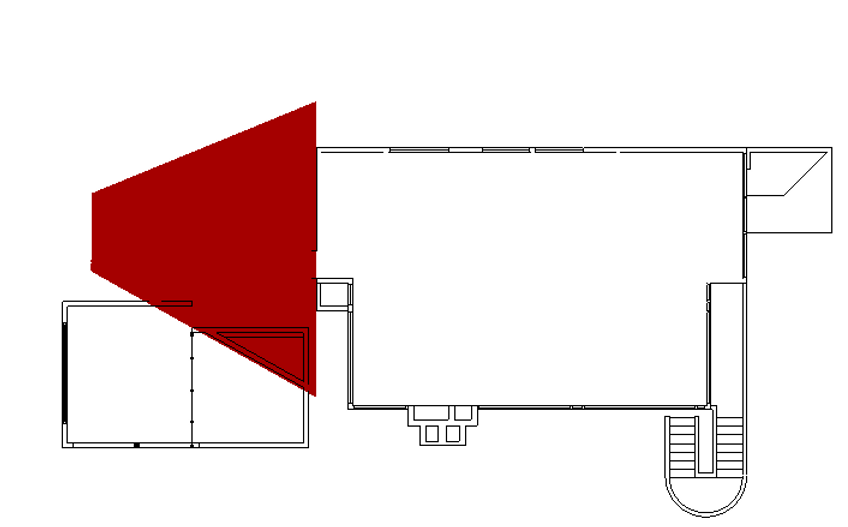

Meta Idea

Screenshot 2025-11-24 135255.png

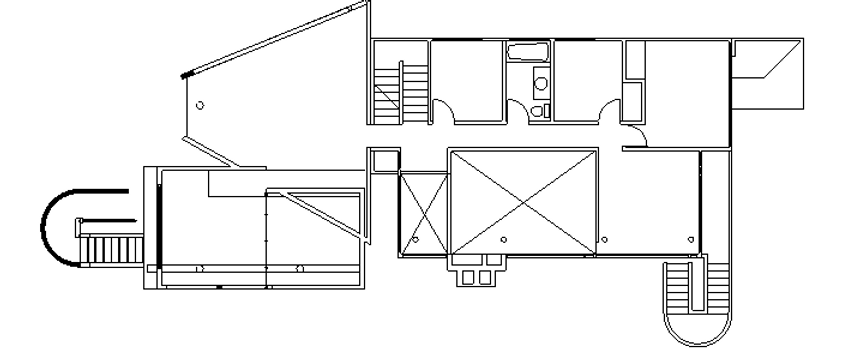

Floor Plans

Screenshot 2025-11-24 135119.png

FIRST FLOOR​​

​

​

BEDROOM​

​

BATH

ROOM

BEDROOM​

​

PATIO​

DINING ROOM

SECOND FLOOR​

​

FAMILY ROOM​

EXERCISE ROOM

BATH

ROOM

PATIO

BEDROOM

DINING ROOM

THIRD FLOOR​

​

PORCH

OFFICE

BATH

ROOM

BEDROOM

BEDROOM

MASTER BEDROOM

MASTER BATHROOM

Hierarchy & Circulation

Screenshot 2025-11-30 043215.png

Circulation​

Hierarchy

Process

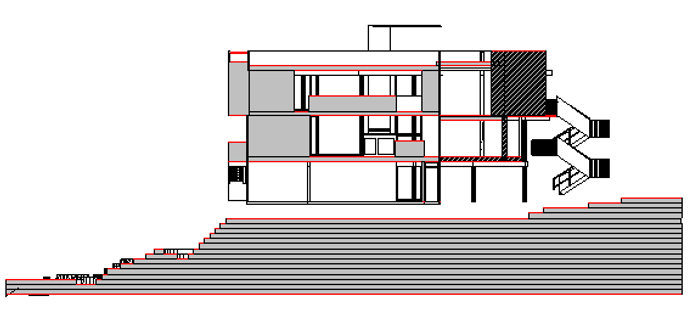

Elevations

Screenshot 2025-11-30 041651.png
Screenshot 2025-11-30 041721.png
Screenshot 2025-11-30 040208.png
Screenshot 2025-11-30 040108.png

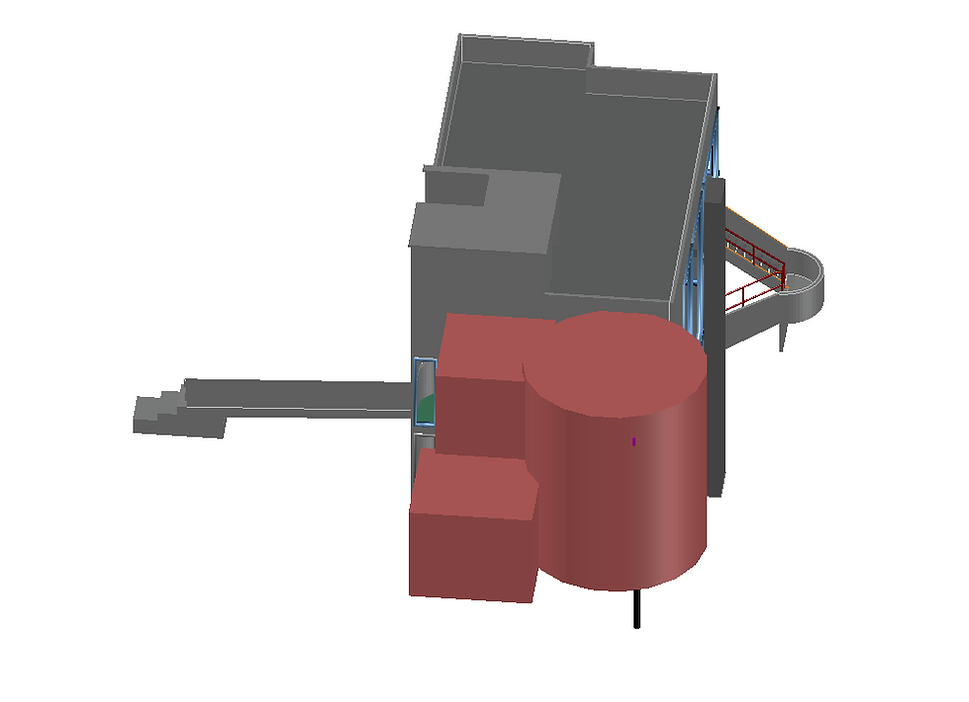

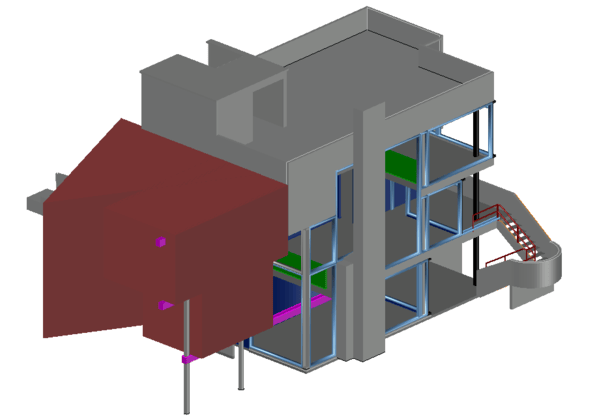

3D

Screenshot 2025-11-24 140833.png
